TangoDown Battlegrip Flip Grip

Now Available in Flat Dark Earth

BG-FG Flip Grip gives the specialized shooter the best of both worlds- in seconds, without tools. Choose between 24 degrees of rake or a true vertical position, quickly and securely. Select vertical – It’s perfect for PSD, extended prone or vehicle use and enjoy a relaxed strong hand wrist angle. Need to switch to a more raked angle for longer range offhand use? Just pull down on the lower grip housing and rotate 180 degrees to relock into position. It’s simple, quick to use and it’s strong. The Flip Grip comes with high grade stainless steel mounting hardware, ultra-tough polymer construction, installation tool and instructions.

BG-FG BATTLEGRIPTM fits all M4/ M16/ AR-15 type rifles & carbines, and MK 16S/ MK 17S/ AR-10/SR-25/MK11. Most weapon receivers configured to fit the M16/AR-15 type grip & ¼-28 fastener will also accept the BG-FG.

Features:

•  Innovative design offers 2 angles in one grip, quickly and easily.

• Comfortable, ergonomic form in either mode

• Aggressive non-slip texture

Installation of BG-FG Flip Grip
Tool supplied by user: 3/8” Allen wrench
Tool supplied in kit: 3/16” Allen wrench, ball end
1) Separate lower weapon receiver or trigger module from the upper receiver. Place upper
receiver aside.
2) Remove existing grip from lower receiver or trigger module, catching the selector detent
spring & detent (if applicable).
3) Remover the BG-FG grip from packaging and disassemble with a 3/8” Allen wrench (user
supplied). Unscrew counter-clockwise, removing 3/8” Allen head fastener, 2 flat
washers and coil spring.
4) Do not disassemble further at this point.
5) Insert selector detent into lower receiver, and detent spring into spring pocket of BG-FG
per weapon shop manual (if applicable).

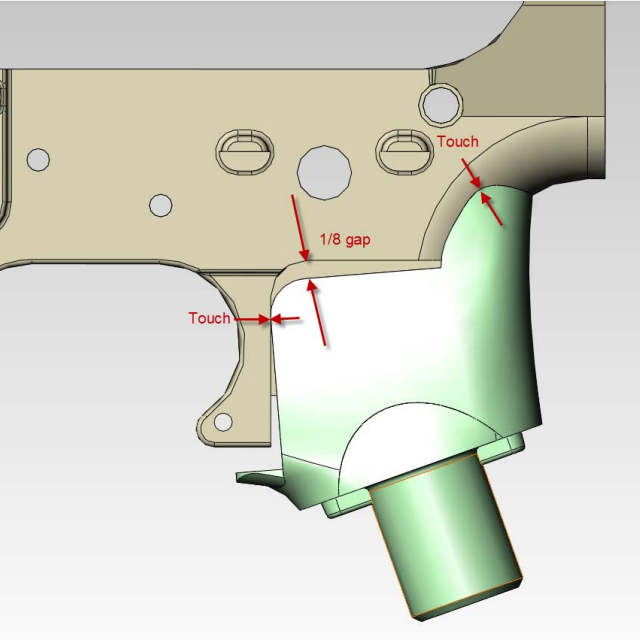

6) Place the BG-FG grip on the lower receiver or trigger module per ‘Image A’. (seen below)

7) Remove lower half of BG-FG grip only, then place supplied 3/16” Allen head fastener
into upper half of BG-FG grip, and tighten until snug. Using the supplied ball end wrench
tip will make this easy. DO NOT over tighten grip fastener.
8) Place the lower half of the grip onto the upper half and replace supplied 3/8” Allen
headed fastener, flat washer, coil spring and remaining flat washer in this sequence.
9) Start the 3/8” fastener, and turn 7 complete revolutions and no more.
The fastener will now lock in place, and still allow rotation of the BG-FG lower grip half
when desired. Assembly is now complete.
To rotate grip, rest toe of butt stock on a steady surface. Pull straight down on lower
grip housing only and rotate 180 degrees. Allow lower grip to snap into place.

Specifications:

OA Height: 4.12”       Weight: 6.8 oz.

Made in USA
